• Fast Ethernet Switch 5 ports expand your network in an instant
• Easy plug-and-play - simply plug it in and you can start using it
• Compatible with all Windows and Macintosh
• Five auto-sensing 10/100 ports that automatically detect the optimal throughput
• Supports any combination of network devices 10 Mbps or 100 Mbps
• This ultra compact
• Fanless design ideal for quiet operation
• Store and forward switching architecture
Standard
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE802.3x Flow Control and Back-pressure
Features

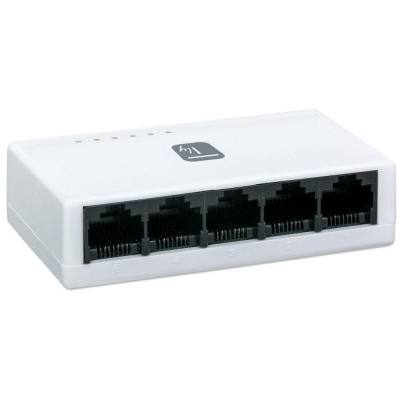

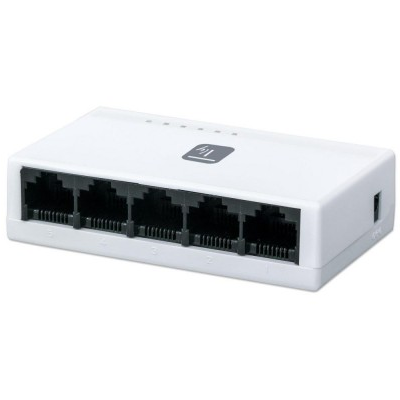

• Ports: 5 ports 10/100 Mbps NWay Switch T
• Cable: Cat3, 4, 5 UTP / STP
• Duplex Mode: All ports (up to 200 Mbps)
• Uplink: All ports support Auto MDI / MDX (Auto Uplink)
• Architecture: Supports Store and Forward switch technology
• Speed filtering / forwarding data
- 10BaseT: 14.880 pps (packets per second)
- 100Base-TX: 148.800 pps (packets per second)
• External Power Supply AC 100 / 240V:
- Output 5V DC, 0.55A
- Input AC 100/240
LED
• Power
• Connection / activities
• 100 Mbps
Environmental Characteristics
• Operating Temperature: 0 to 40 C
• Humidity: 10% - 90% (non-condensing)
Dimensions
• Width: 97 mm
• Depth: 45 mm
• Height: 23 mm
Certifications
• EC
• FCC Class B
• RoHS
Package Contents
• Switch 5 Ports Fast Ethernet
• Power supply
• Instruction Manual
