Technical specifications.

PoE standard IEEE802.3af/at
Interface: 10 RJ45 Ports 10/100Mbps; The RJ45 port via consultation

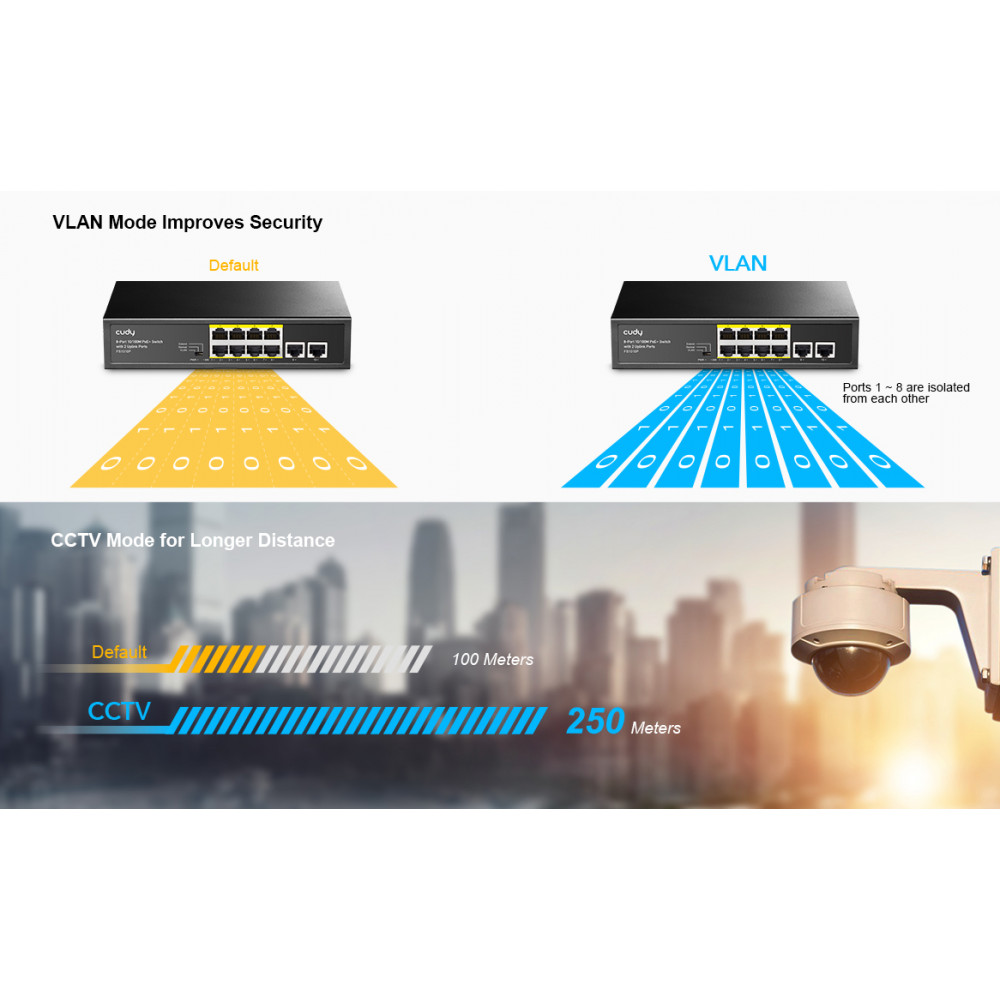

CCTV and VLAN key function
PoE 1~8 ports
Total PoE 120 W
Power supply 120W
RJ45 PoE Power Supply Mode A Anode1/2 Cathode3/6
PoE Output Port Max 30W
PWR, LNK/ACT, PoE Indicator
Network media 10BASE-T: UTP cable category 3, 4, 5 (≤100 m)；100BASE-TX: UTP cable category 5, 5e (≤100 m)
8K MAC address table, automatic study, automatic updates
Jumbo frame 1528 bytes
Packet buffer 2M bits
Transfer mode: store-and-forward
Packet forwarding rate: 1.48 Mpps
Bandwidth: 2Mbit
Fanless
Support for energy-saving green IEEE（802.3az)
Mains input 100~240V AC, 50/60 Hz
Surge protection ±4KV
MTBF >50000 hours
Electrostatic standard: contact 4KV, air 6KV

Dimensions

Width: 200mm
Depth: 118 mm
Height: 44 mm

Environmental characteristics

Operating temperature 0°C ~ 40°C
Storage temperature -40°C ~ 70°C
Operating humidity 10% ~ 90% non-condensing
Storage humidity 5% ~ 90% non-condensing

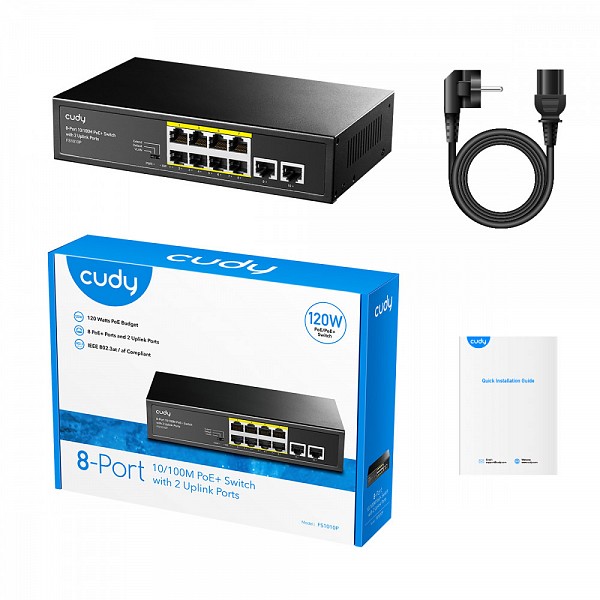

Package Contents

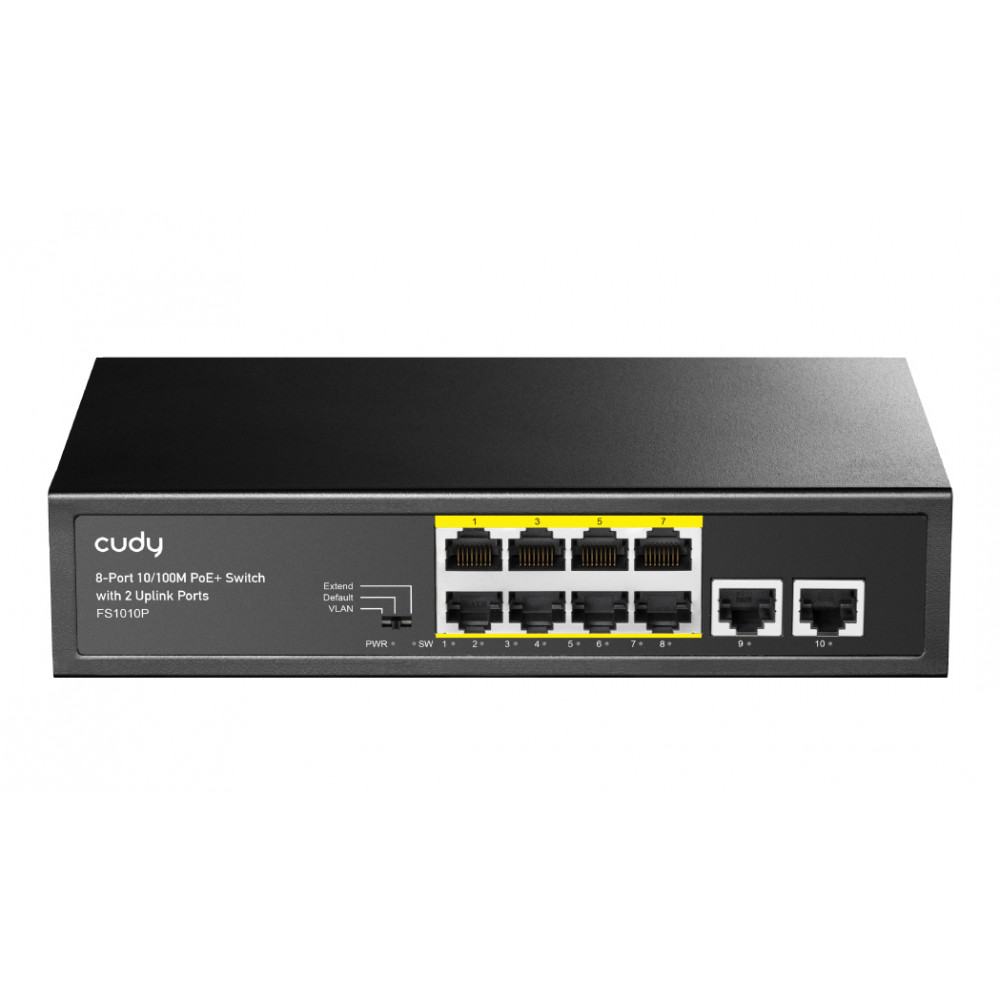

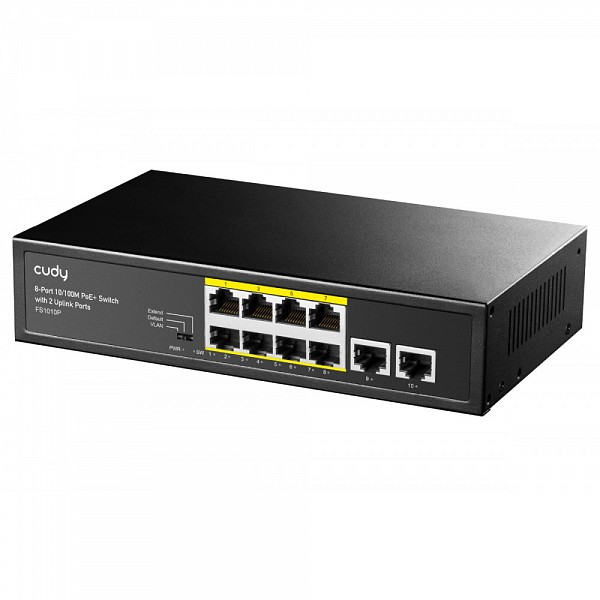

PoE+ 10/100M 8-Port Switch
User Manual
