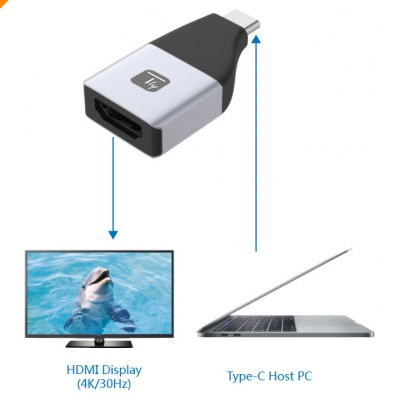

IADAP USBC-HDMIHDR is a USB-C™ to HDMI with HDR adapter which allows you to transmit signals from your host PC to an HDMI monitor. This adapter enables to output HDMI video with max 4k/60Hz. It can work on all USB-C™ and Thunderbolt™ 3 host that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Features
• Input connector: male USB-C™
• USB-C™ supports DP1.2 Alt mode
• Output connector: HDMI
• Supports HDMI max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth
• Supports 6/8/10/12 bit color depth output
• Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
• Supports HDCP 2.2&HDCP1.4
• Supports HDR
Technical specifications
• Input connector: male USB-C™
• Output connector: female HDMI
• Resolution: up to 3840x2160@60Hz

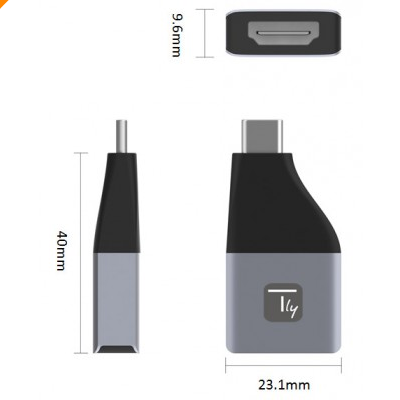

• Dimensions: 40 x 23,1 x 9,6 mm
• Operating Temperature: 0°C ~ 45°C
• Operating Humidity: 10% ~ 90% RH (no condensation)
• Storage Temperature: -10°C ~ 70°C
• Storage Humidity: 5% ~ 90% RH (no condensation)
• Power Source: Bus Power
• Certifications: FCC, CE
Package contents
• USB-C™ to HDMI adapter
