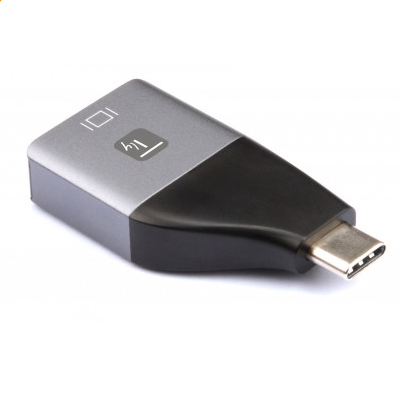

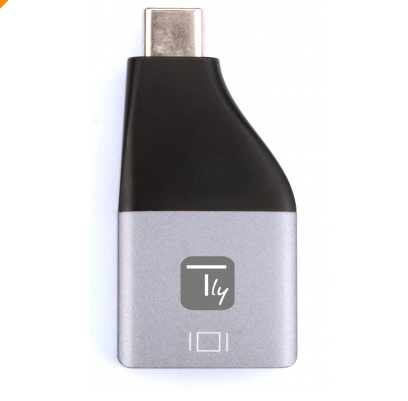

IADAP USBC-DP4K is a USB-C™ to DisplayPort Adapter. It allows to connect USB-C™ source or Thunderbolt™ 3 source to DisplayPort display at max 3840x2160@60Hz resolution. It supports to work on any Type-C host that supports DP1.2 Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Features
• Supports Type-C input and DisplayPort output
• Supports DisplayPort 1.2 Alt mode
• Supports per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
• Supports content protection of HDCP1.4 & HDCP 2.2
• Supports DisplayPort resolution up to 3840x2160@60Hz
• USB bus power (no external power supply)
Technical specifications
• Input connector: male USB-C™
• Output connector: female DisplayPort
• Resolution: up to 3840x2160@60Hz

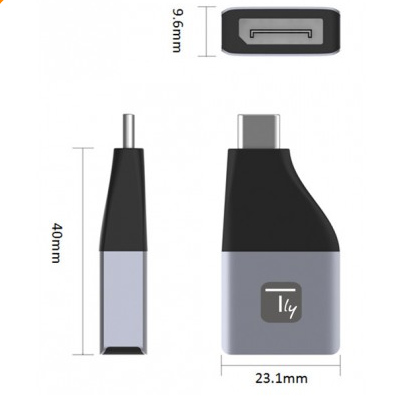

• Dimensions: 40 x 23,1 x 9,6 mm
• Operating Temperature: 0°C ~ 45°C
• Operating Humidity: 10% ~ 85 % RH (no condensation)
• Storage Temperature: -10°C ~ 70°C
• Storage Humidity: 5% ~ 90 % RH (no condensation)
• Power Source: Bus Power
• Certifications: FCC, CE
Package contents
• USB-C™ to Displayport Adapter
