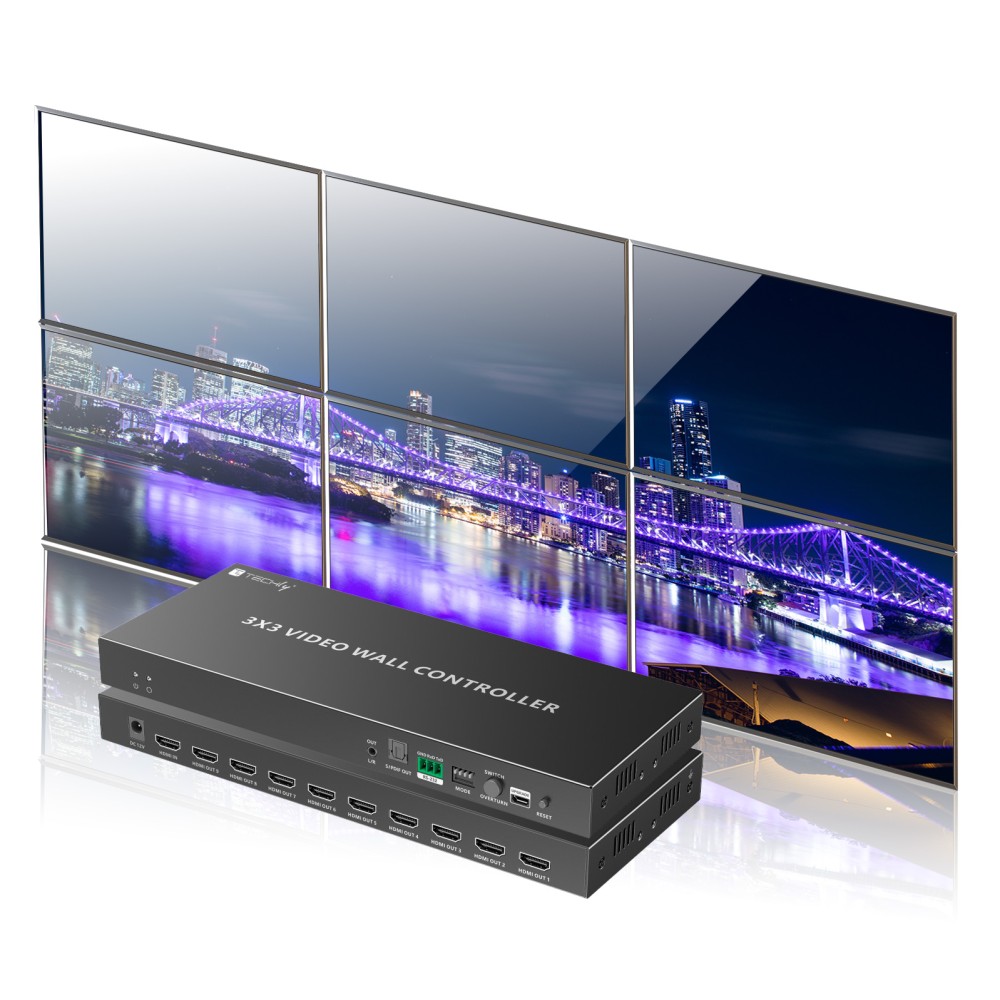

1-in-9-out Video Wall Controller: Support one HDMI input source and nine HDMI outputs.

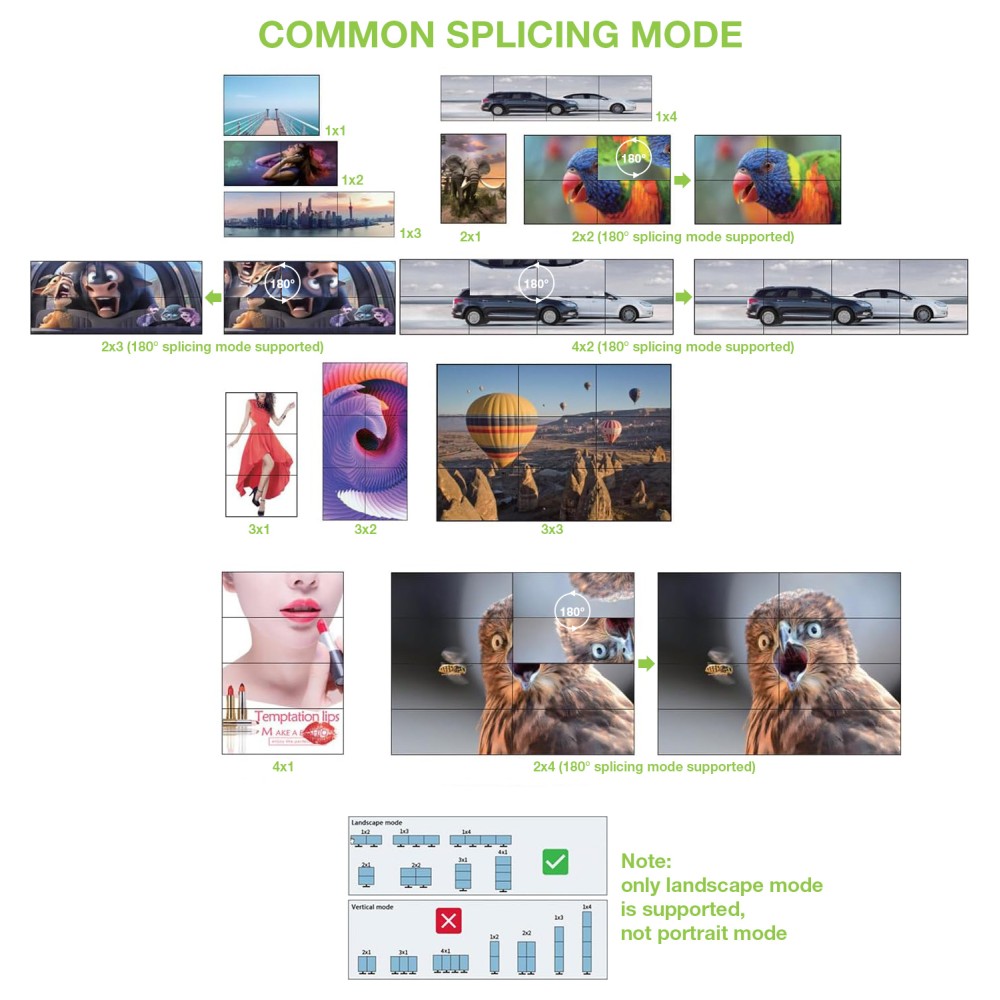

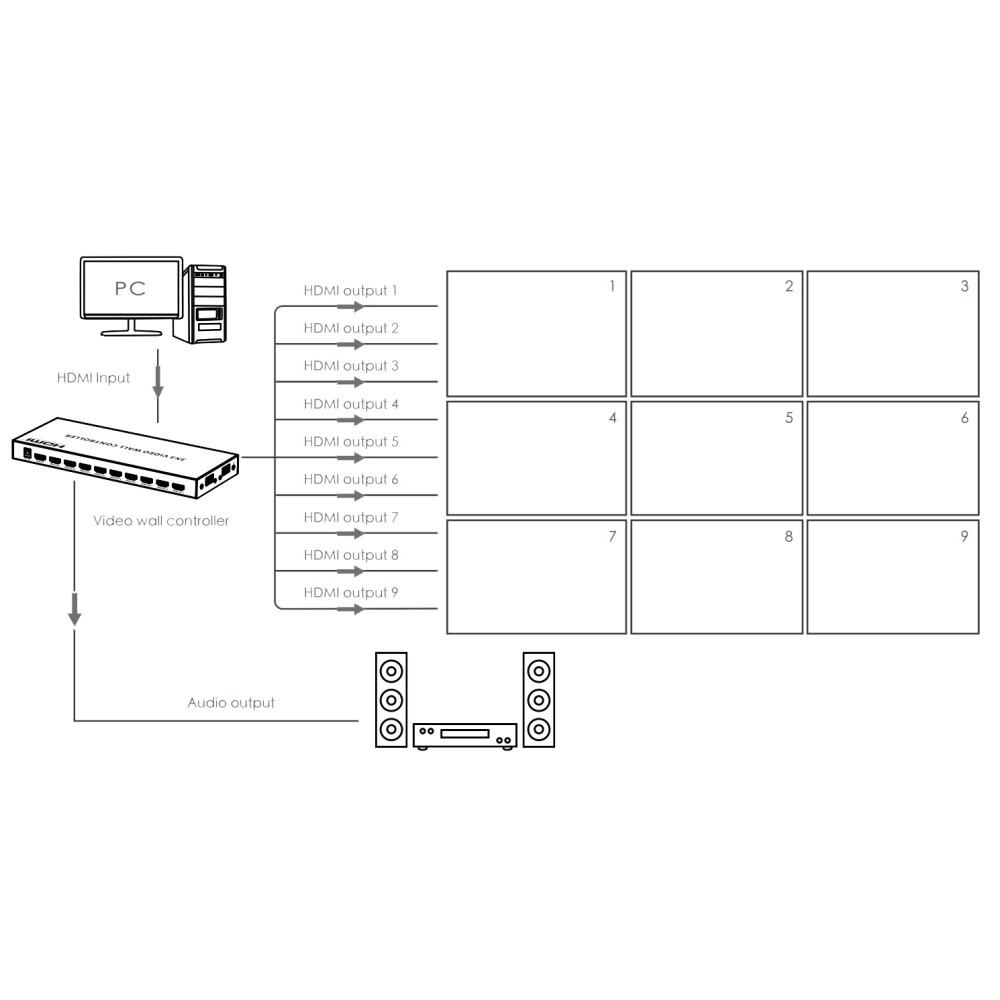

Support 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3 splicing modes, which can be set by RS-232 or dip switch.
It can flexibly adapt to different installation needs, which can be widely used in security monitoring, railway transportation, television broadcasting, advertising, home theater, education and other fields.

Features

Supports 1 HDMI input and 9 HDMI outputs
Supports resolution up to 4096x2160@60Hz, compatible with lower resolutions
Supports a variety of display modes such as 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3

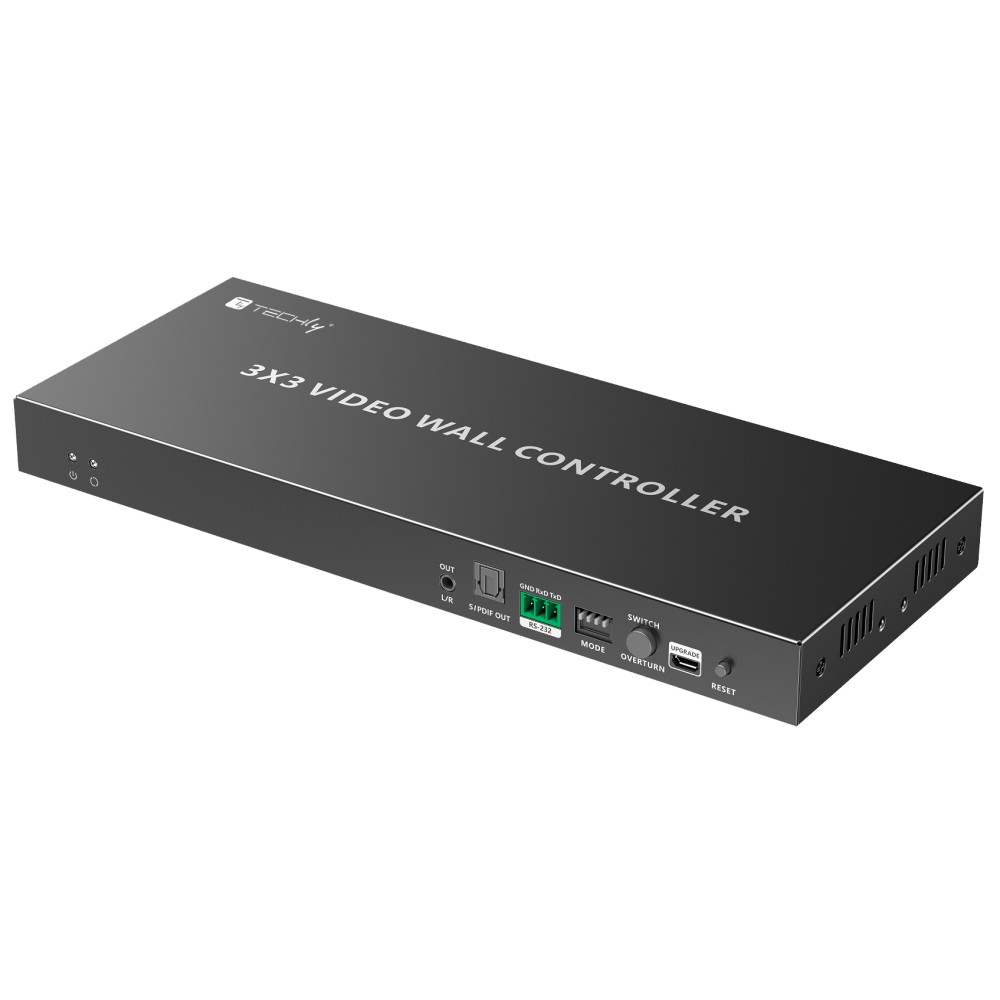

Supports switching modes via dip switch
Supports RS-232 control to set display mode
Supports 3.5mm left/right channel audio output or audio output via S/PDIF
Supports 180° rotation of HDMI1/2 screen image in 2x2/2x3/4x2 mode (when the upper displays are installed upside down)
Firmware upgradeable via Micro USB port
Plug and play, no driver installation required

Technical Specifications

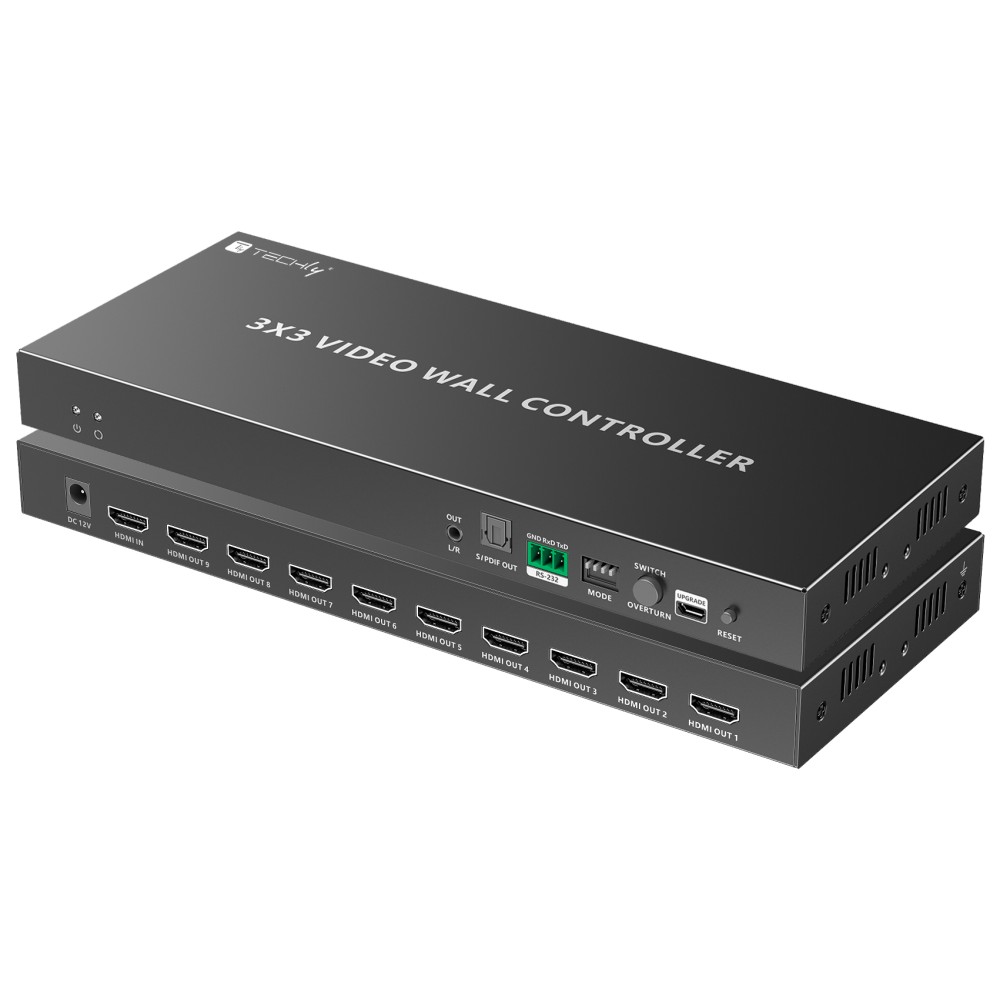

Input: 1x HDMI
Outputs: 9 x HDMI
HDMI 1.4 compatible
HDCP 2.2 compatible
Max. resolution supported: 4096x2160@24/25/30/50/60Hz

Protections

Lightning protection
Surge protection
ESD protection

Dimensions

Depth: 105 mm
Width: 265 mm
Height: 25 mm

Environmental characteristics

Operating temperature -20°C~60°C
Storage temperature -30°C~70°C
Humidity 0~90% RH (non-condensing)

Package contents

1x Controller
1x DC12V 1A Power Supply
1x User Manual
2x Mounting brackets
6x Screws
1x Screw earth
1x Terminal block
