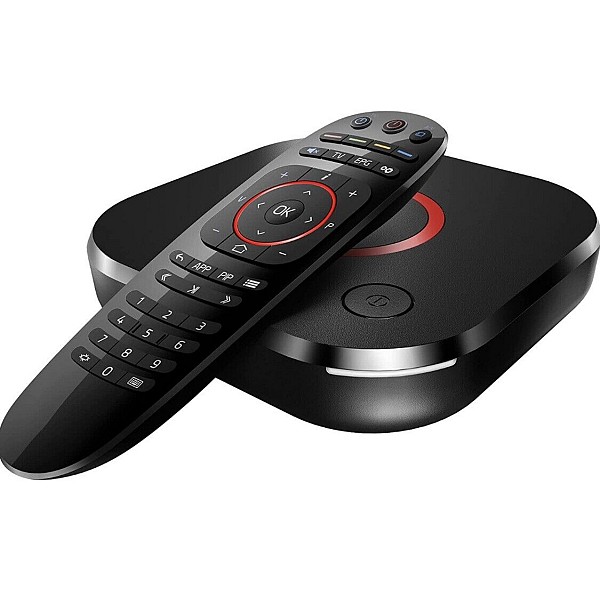

MAG544W3 are powerful IPTV set-top boxes based on Linux OS.
A set-top box with a wireless WIFI connection to the network.
The devices are powered Amlogic S905Y4 chipset with quad-core ARM Cortex-A35 processor.
Thanks to the new hardware, the model significantly outperforms the previous generation of set-top boxes in terms of performance.
The device plays 4K videos smoothly and supports all modern codecs, including HEVC.
API from Infomir allows you to quickly implement model in any video service that previously used MAG devices.
The device supports eight-channel Dolby Digital PlusTM audio, is equipped with two with two USB 2.0 ports and can be connected to the Internet via an Ethernet port.

Important to note:

Before you want to buy a smart IPTV set top box, please check with your service provider which version of MINISTRA it uses. This is a crucial point that we want you to be aware of when purchasing the IPTV receivers. This STB model only runs on Ministra v.5.6.10.
To use the hb-digital WLAN-Stick HB45, update the software of the Set Top Box via the Ethernet port*.
Please note that the pictures of this product model are for reference only, the actual product may be slightly different
Please note in particular that all set top boxes you buy from us come with default factory settings and are not pre-programmed and do not include IP transmitters

Technical data:

HARDWARE

chipset: ………………Amlogic S905Y4-B
Processor: ………….ARM Cortex-A35 Quad-Core, 2 000 MHz
Power:………………. 16 500 DMIPS
RAM: …………………1 GB DDR3
Memory: ……………4 GB eMMC
GPU: …………………ARM G31 MP2, 850 MHz. Supports OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0
WLAN module: ….2T2R ac (Integrated)

SOFTWARE

Operating system: Linux 4.9
Supported middleware: Pre-integrated Ministra TV platform. Modifications with operator apps, customization or complete replacement possible.

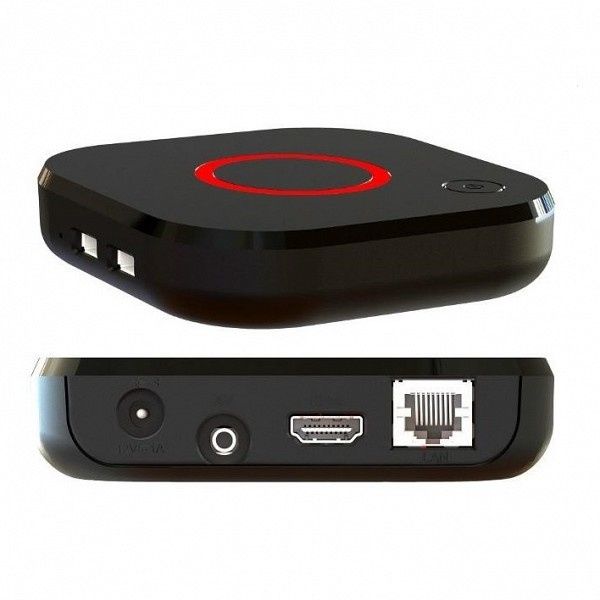

EXTERNAL INTERFACES

HDMI 2.1,
100 Mbps Ethernet,
USB 2.0 × 1
USB 3.0 x 1

AUDIO AND VIDEO

Audio coding MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video mode PAL, NTSC, 576p, 720p,1080p, 1080i, 2160p.
Video encoding MPEG1/2 MPHL, MPEG4 part 2 (ASP), AV1, MJPEG streams, H.265 Main/Main 10 L5.1 High 2160p 60 fps (optional),H.264 AVC High L5.1 2160p 30 fps, XviD, 3D video support
Video container TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image format JPEG, PNG, BMP, RAW
subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subtitles, WebVtt, subtitles
Playlist format M3U, M3U8, PLS, CUE

DIMENSION

length 120mm
Width 78mm
Height 21mm
weight 110g

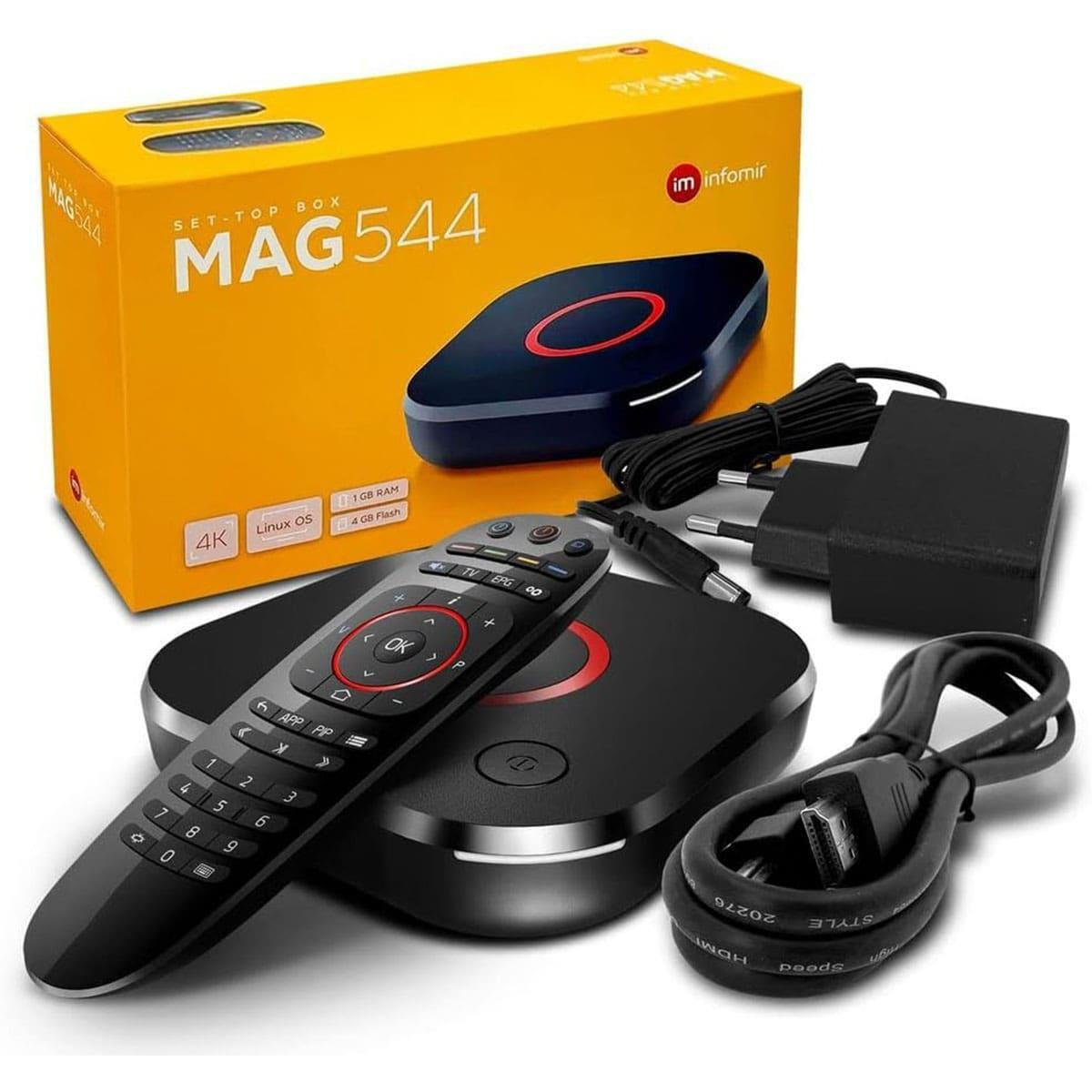

Scope of delivery:

1 x MAG 544W3 Set Top Box
1 x user manual
1 x HDMI cable 2.1
1 x 5V/2A power supply
1 x remote control
2 x AAA batteries
