Chipset Amlogic S905Y4-B Quad core, Linux 4.9,
Tηλεχειριστήριο IR, υποστήριξη 4K και HEVC,
1 GB RAM,
4 GB Flash
USB 3.0 x 1/USB 2.0 x 1
ενσωματωμένη μονάδα Wi-Fi dual band 2.4/5mhz,
Εξοδος HDMI 2.1.

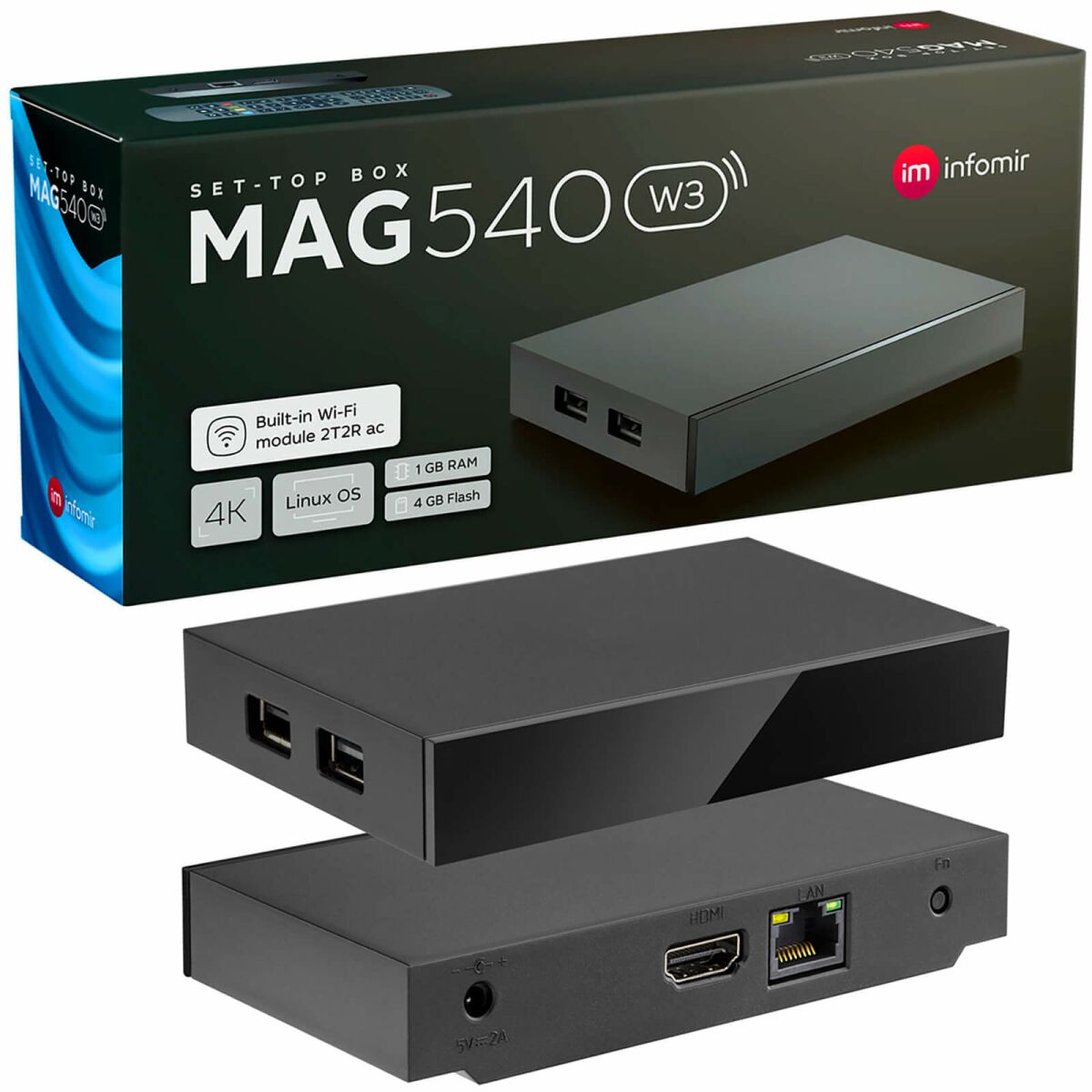

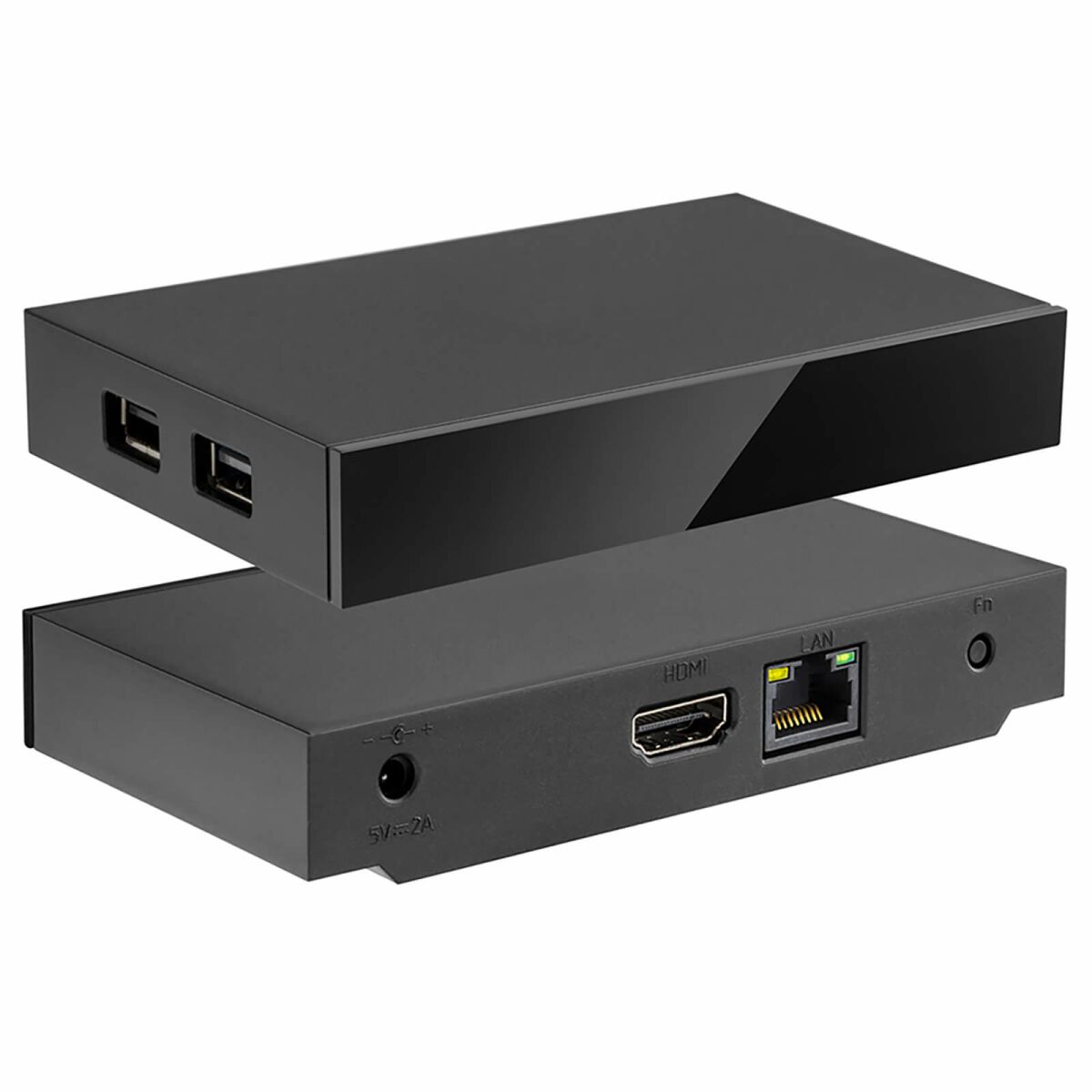

Χαρακτηριστικά: MAG540w3 is high performance 4K Linux Set Top Box MAG 540w3 is the next generation of MAG models and powered by a quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4-B chipset. This hardware makes the model much more powerful than previous STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K. With MAG540w3, operators can provide a reliable service to their subscribers Interface continuity makes it easy to integrate the model into projects that have previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request. For local and large streaming operators With MAG540/540w3, users can watch linear TV, video-on-demand and content from IPTV/OTT providers.1 In addition, the set-top box plays content within the local network and from external media. Operators can customise the device to offer users a tailored user interface and provide reliable technical support. Linux 4.9, Amlogic S905Y4-B chipset, infrared remote control, 4K and HEVC support, 1GB RAM, 4GB eMMC, HDMI 2.1 port, USB 2.0, 2.4GHz and 5GHz. This Internet TV Box can establish an Internet connection via the Ethernet interface at 100 Mbps. A network cable is required for the connection. Important to note:

Before you want to buy a smart IPTV Set Top Box, please check with your service provider which version of MINISTRA they use. This is a crucial point that we would like to draw your attention to when purchasing IPTV receivers. This STB model only runs on Ministra v.5.6.9.
To use the hb-digital WLAN-Stick HB45, update the Set Top Box software via the Ethernet port*
HB-DIGITAL GmbH is the official distributor of MAG products in Germany and Europe. Please note that the manufacturer may change the appearance of the packaging, product specifications or accessories. Please note that the pictures of this product model are for reference only, the actual product may differ slightly
Please note in particular that all set top boxes purchased from us are shipped with default factory settings and are not pre-programmed and do not include IP transmitters

Technical specifications:

Video Mode: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs: MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™.
Video codecs: MPEG1/2 MP@HL, MPEG4 Part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support.
Video containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats: JPEG, PNG, BMP, RAW
Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formats: M3U, M3U8, PLS, CUE
Chipset Amlogic: S905Y4-B
Performance: 16 500 DMIPS
Processor: Quad-Core ARM Cortex-A35, 2,000 MHz
RAM: 1 GB LPDDR4
Flash memory: 4 GB eMMC
Digital connections: HDMI 2.1
Ethernet: 100 Mbit/s
USB: USB 2.0 × 2
WLAN (Wi-Fi) Built-in 2T2R ac

Power supply:

AC adapter DC 5V, 2A

Dimensions:

W/D/H: 120 × 78 × 21 mm
Weight: 110 g

Scope of delivery:

1 x MAG 540w3 IPTV Set Top Box.
1 x user manual
1 x HDMI cable
1 x 5V/2A power supply unit
1 x Remote control
2x AAA batteries
