• I-CASE EM-1009BKEC is the Basic solution for small networks
• The Techly Professional cabinets are the result of continuous research that makes it possible to satisfy even the cabling needs of small networks
• Practicality and flexibility: Removable side panels, 230° door opening and depth adjustable uprights for greater adaptability during installation
• Cable passage and fan installation
• Quick assembly: supplied pre-assembled, it is easy to install and is ready to use: with assembly kit included
• Compact: compliant with 10” standards, ideal for building small networks
• Economy: linear design to offer the best quality/price ratio
• Accessories: wide range of accessories to meet the needs of designers and installers

Technical Specifications

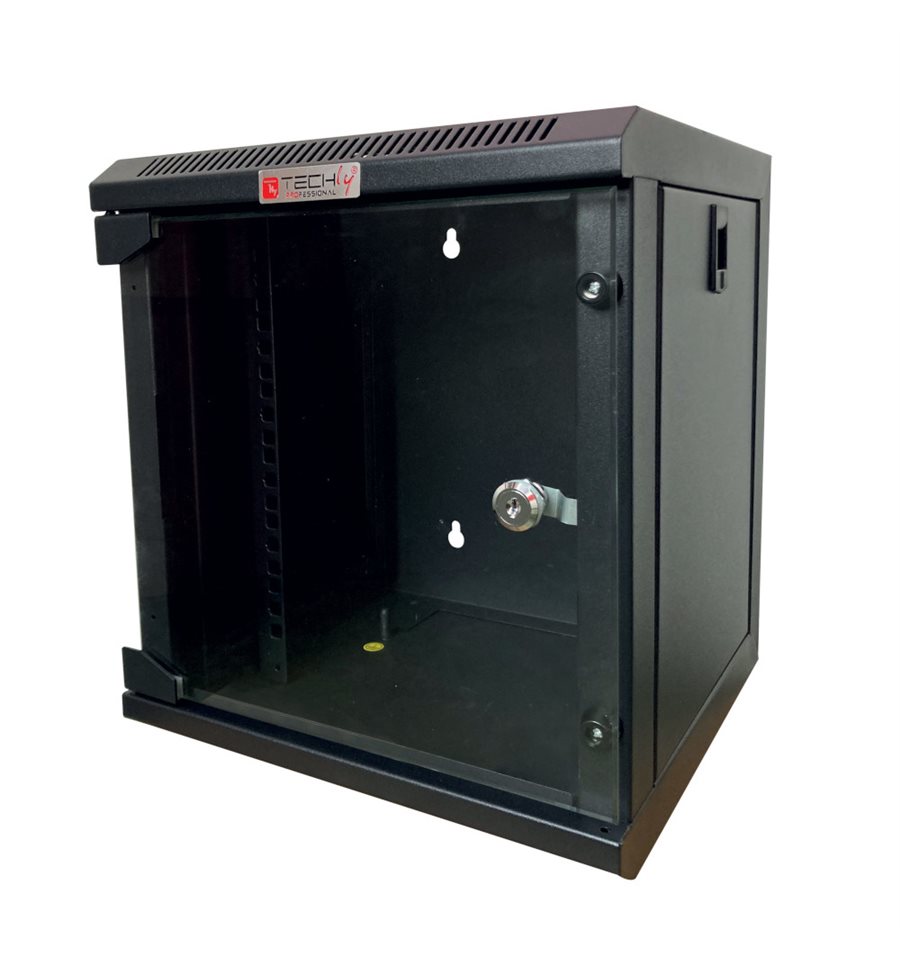

• Network Rack 10” Basic Series cabinet

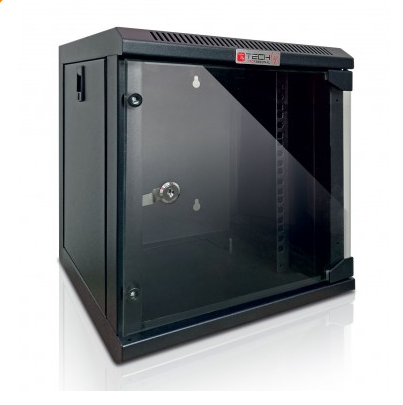

• Front door: in reversible glass with 230° opening angle and key lock

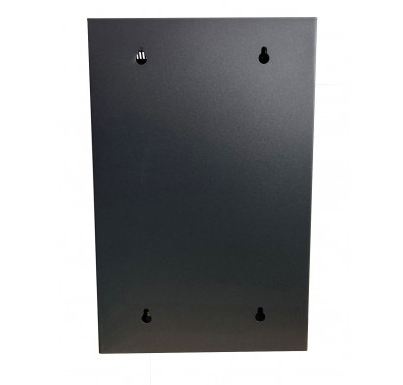

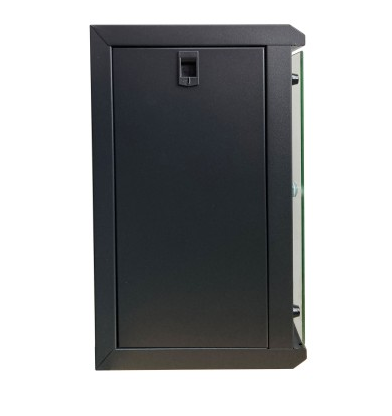

• Side panels removable blinds equipped with closing clips and blind rear panel
• Pair of front uprights adjustable in different positions (maximum depth available with fully advanced uprights: 22 cm)

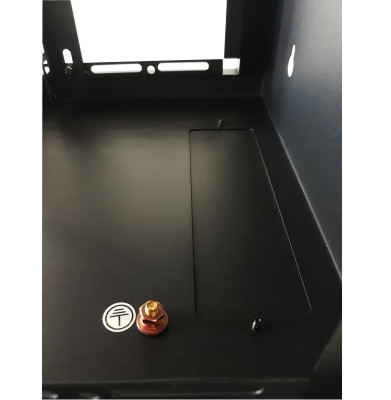

• Provided with cable management panels with screw-fixed profiles on the roof and base (dimensions: 20x6 cm)

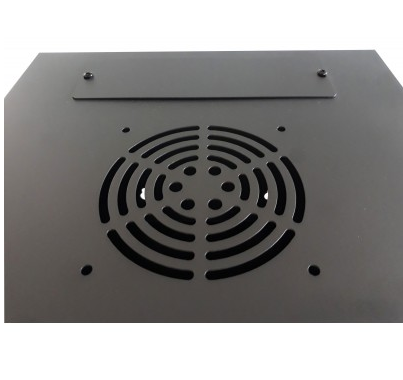

• Predisposition for installation of a 120x120 fan on the roof and front slits to facilitate ventilation
• Degree of protection: IP20
• Complete with mounting kit with nuts and screws
• Color: RAL 9004 black
• N° of units: 9

Dimensions
• Width: 310 mm
• Depth: 295 mm
• Height: 485 mm

Package Contents
• 1x 10" Rack Cabinet I-CASE EM-1009BKEC
• 1x mounting kit with nuts and screws
