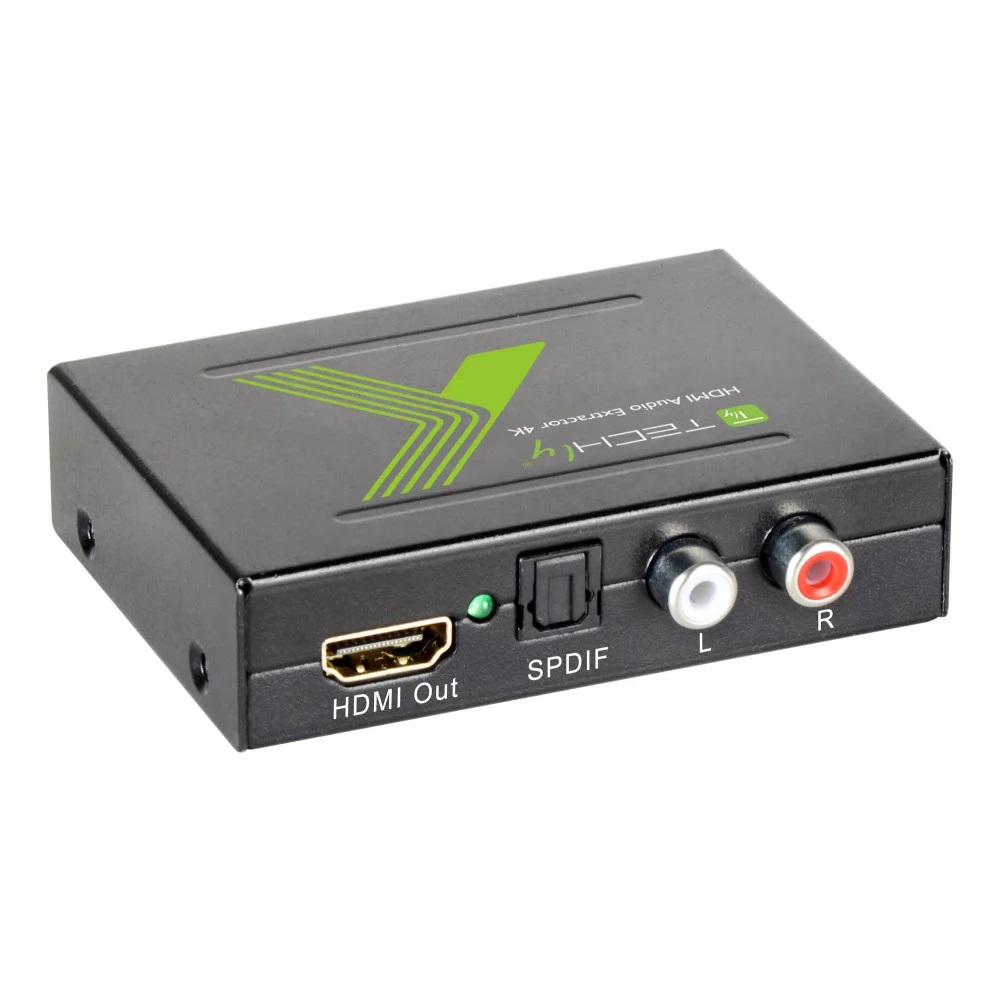

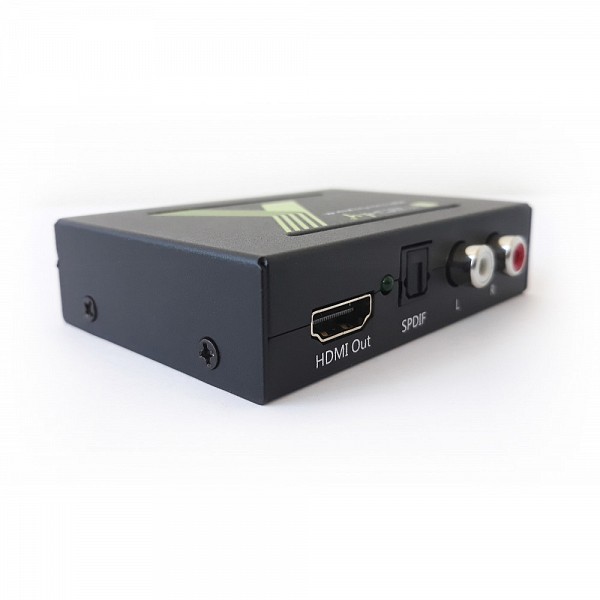

IDATA HDMI-EA lets you extract the audio signal from the HDMI source and convert it to analog RCA SPDIF + R / L audio.
It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signals to external speakers.

Sound mode

ADV: The HDMI signal (audio + video) is simply looped-through via the device, no division is made between video and audio
2.0CH: the HDMI signal is converted to Toslink and RCA (stereo, R / L)
5.1CH: conversion according to Toslink 5.1 (Dolby Digital 5.1)

Features

Separates by the HDMI audio signal and provides the separately
HDMI audio conversion Toslink and RCA audio (R / L)
The HDMI video signal is looped-through output devices
Supports resolutions up to 4Kx2K@60Hz
With LED activity indicator
Quick installation
5V 2A power supply included

Technical Specifications

Video Bandwidth: 18Gbps
HDMI resolution: up to 4Kx2K@ 50/60Hz (YUV 4:4:4), 4Kx2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz
Supported color space: RGB, YCbCr4:4:4, YCbCr4:2:2
Color depth: 10-bit, 12-bit
Audio outputs: L/R+SPDIF
HDMI audio formats (pass-through): LPCM 2/5.1/7.1CH, Dolby Digital 2-5.1CH, DTS 2-5.1CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Digital audio formats: LPCM 2CH, Dolby Digital 2-5.1CH and DTS2-5.1CH

• L/R audio formats: 2CH Analog Stereo

Power Supply

Input: AC 100V-240V (50 / 60Hz)
Output: DC5V / 2A

Environmental Features

Operating temperature: -15 / + 55 ° C
Operating Humidity: 5/90% non-condensing

Dimensions

Width: 77 mm
Depth: 63 mm
Height: 22 mm
Weight: 135 g

Certifications

CE
WEEE

Package Contents

Audio Extractor IDATA HDMI-EA
5V 2A
User's manual
